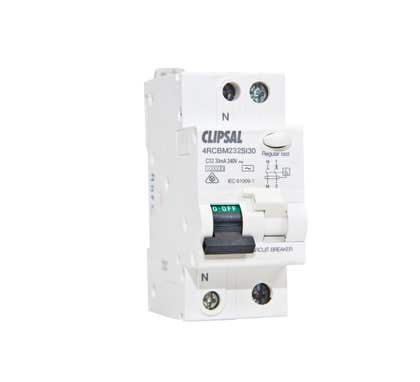

Clipsal Max 4 Rcbo C 32A 1Pn 30Ma 6Ka A Si Residual Cu - 4RCBM232SI30
Residual current breaker with overcurrent protection (RCBO), MAX4, 2P, 32 A, C curve, 6000 A, 240 V, 30 mA, A type
0 In Stock
Need more?
This item is currently not available for backorder.
We can notify you when it's available again by subscribing to the back in stock notification. Enter your email address and click submit to automatically receive an email when we get more in.
Price
$145.07 $131.88
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Clipsal Max 4 Rcbo C 32A 1Pn 30Ma 6Ka A Si Residual Cu - 4RCBM232SI30
Width 100
Height 85
Depth 40
| SKU | CLI4RCBM232SI30 |
|---|---|
| Supplier No | 4RCBM232SI30 |
| EAN / Barcode | 9318795021904 |
| Standards | AS/NZS 61009 |
| Width | 98 |
| Height | 85.000000 |
| Length | 40.000000 |
| Width | 100.000000 |
| Brand | Clipsal |
| Range | Max4 |
| Number of Poles | 1 Pole + Neutral |
| Current Rating | 32 Amps |
| Voltage | 240 V AC |
Clipsal Max 4 Rcbo C 32A 1Pn 30Ma 6Ka A Si Residual Cu - 4RCBM232SI30
Get Max 4 your buck
Complete protection with high performance. With Clipsal Max 4 you will find a range of enclosures, switchboards, residual current devices, miniature circuit breakers, isolators, distribution boards, overvoltage protection and accessories.
0 of 0 Reviews
A FEW FAQS
Yes the part number is a 4RCBM232SI30. this is commonly used with motors, pumps and generators as it is more immune to voltage spikes resulting in less nuisance tripping.
4RCBM220/30 will switch both active and neutral. For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?CatNo=4RCBM220/30
Unfortunately we do not offer a 3 pole version of a 4RCBM230/30. However as an alternative we can offer a A9F54432 (4 Pole 32A Circuit Breaker) and a A9V06763 (Vigi Block). For further information please visit www.clipsal.com/Trade
4RCBM220SI30 is the replacement for part number 4RCBM220G30. 4RCBM220SI30 is RCD/MCB, 2 module, 2 Pole, 20A, 30mA, 10KA, C-Curve SI-type, super immune, A-type, surge current protected to 3000 A 8/20ms. For further information, please refer to the below link: https://www.clipsal.com/Trade/Products/ProductDetail?catno=4RCBM220SI30
For this 4RCBM series range the KA rating is above 25a is limited to 6KA and below 25amps is 10ka.
Part codes you need a PDL 56CB4 with a 4RCBE232/10
