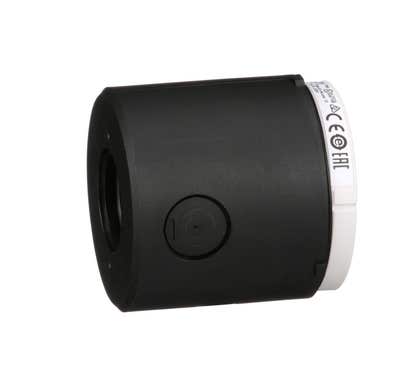

Schneider Harmony XVB Base Unit + Cover For Modular Tower Lights Plastic Black Ø70 Bottom Entry Side Cable Entry - XVBC21
Base Unit + Cover For Modular Tower Lights, Plastic, Black, Ø70, Bottom Entry, Side Cable Entry
Dispatch. 2 days
Need more?
This item is currently available for backorder with an estimated arrival time of 2 days
Please note this ETA is provided to us by our suppliers and could potentially be delayed due to factors outside our control. If there are any delays we will contact you to keep you updated.
Price
$98.43 $89.48
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Schneider Harmony XVB Base Unit + Cover For Modular Tower Lights Plastic Black Ø70 Bottom Entry Side Cable Entry - XVBC21
Width 805
Height 794
Depth 919
| SKU | SCHXVBC21 |
|---|---|
| Supplier No | XVBC21 |
| EAN / Barcode | 3389110845020 |
| Height | 794.800000 |
| Length | 919.700000 |
| Width | 805.000000 |
| Brand | Clipsal |
| Range | Harmony |
This Harmony XVB base unit with bottom or side cable entry has a diameter of 70mm. This base unit is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of your machines. It is made of glass reinforced polyamide material and it allows the cable to entry from bottom or side. It complies with CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards with NEMA 4X protection. Simple and modular design to allow for easy installation with illuminated unit via tube fixing and make complete tower light. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
0 of 0 Reviews
A FEW FAQS
Issue: XVB instruction Product Line: XVB—70 mm Diameter (2.75 inches) Environment: Tower Lights and Beacons Resolution: See attached instruction sheet.
Issue: XVBC base unit and cover Product Line: Harmony Tower Lights and Beacons Environment: XVBC—70 mm Diameter (2.75 inches) Resolution: XVBC21 base unit is composed of XVBC07 base and XVBC081 cover.
Issue: XVAC211 and XVAC21 Difference Product Line: Push Buttons and Operator Interface Environment: Tower Lights Cause: Product Features Resolution: They are the same cover and base units, but the XVAC21 does not include a gasket .
Issue: What material is the XVBC02 & XVBC11 made of? Product Line: Harmony Pushbuttons Environment: All Products Cause: Product Features Resolution: The XVBC02 is stainless steel (matte black finish). The XVBC11 tulip is a Zinc alloy (black matte finish). CTA-ID : 2023180
Issue: Will the XVBC11 tulip fit with XVBL beacons? Product Line: Harmony Tower Lights Environment: All Products Cause: Product Features Resolution: Yes, the XVBC11 tulip base will work with XVBL beacons when used with a support tube. CTA-ID : 2011190
Issue: XVBC9B wiring Product Line: Harmong Tower Lights and Beacons Environment: XVB 70mm Diameter (2.75 inches) Resolution: The XVBC9B terminals are not polarity sensitive.
