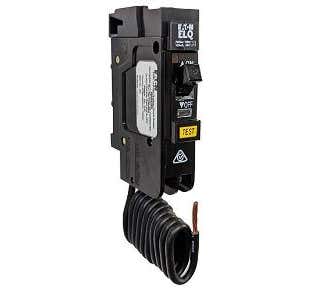

Eaton EATELQ132C3TD-A ELQ Earth Leakage Breaker Combined MCB/RCD divices, 1P, 32A, 30mA, 6kA, Type A
The ELQ breaker (safety switch) combines overload, short circuit and residual current protection (earth leakage) in one compact unit in a single pole configuration. This style of circuit breaker, which has become mandatory in new installations, safeguards people from the danger of electric shock by instantly interrupting the electrical circuit to the load when a fault current to earth exceeds the rated sensitivity which is usually expressed in milli-Amp (mA).
Features:
• Combined MCB/RCD device
• Permanent connected neutral conductor (950mm)
• Rating breaking capacity 6kArms
• Complies with AS/NZS 3190 & AS/NZS 315
• Australian approval number NSW27679
• Yellow test button for easy identification of type A device
Earth Leakage Mcb 1P 32A 30Ma Type A
Eaton ELQ132C3TD-A ELQ Earth Leakage Breaker Combined MCB/RCD divices, 1P, 32A, 30mA, 6kA, Type A
Dispatch. 2 days
Need more?
This item is currently available for backorder with an estimated arrival time of 2 days
Please note this ETA is provided to us by our suppliers and could potentially be delayed due to factors outside our control. If there are any delays we will contact you to keep you updated.
Price
$160.60 $146.00
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Earth Leakage Mcb 1P 32A 30Ma Type A
Width 25
Height 113
| SKU | EATELQ132C3TD-A |
|---|---|
| Supplier No | ELQ132C3TD-A |
| Height | 113.000000 |
| Width | 25.000000 |
| Brand | Eaton |
| Number of Poles | 32 Pole |
