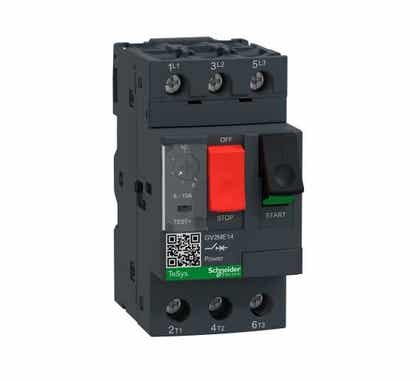

Schneider Electric TeSys GV2 Motor Circuit Breaker Tesys Gv2 3P 6-10 A Thermal Magnetic Screw Clamp Terminals - GV2ME14
Motor Circuit Breaker, Tesys Gv2, 3P, 6-10 A, Thermal Magnetic, Screw Clamp Terminals
Dispatch. 2 days
Need more?
This item is currently available for backorder with an estimated arrival time of 2 days
Please note this ETA is provided to us by our suppliers and could potentially be delayed due to factors outside our control. If there are any delays we will contact you to keep you updated.
Price
$175.95 $159.95
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Schneider Electric TeSys GV2 Motor Circuit Breaker Tesys Gv2 3P 6-10 A Thermal Magnetic Screw Clamp Terminals - GV2ME14
Width 850
Height 450
Depth 900
| SKU | SCHGV2ME14 |
|---|---|
| Supplier No | GV2ME14 |
| EAN / Barcode | 3389110343137 |
| Standards | EN/IEC 60947-2 |
| Width | 45 |
| Height | 450.000000 |
| Length | 900.000000 |
| Width | 850.000000 |
| Brand | Clipsal |
| Range | TeSys |
| Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Current Rating | 10 Amps |
| Durability | 100000 cycles for AC-3 at 440 V |
TeSys GV motor circuit breaker, 3 poles (3P), 10A/690V, for 3-phase motor applications 3-4kW@400V. It provides a thermal-magnetic protection with a thermal setting range 6-10A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
0 of 0 Reviews
A FEW FAQS
Issue: GV2ME compatibility with old enclosure Product Line: Motor Starters and Protectors Environment: TeSys™ GV Manual Starters and Protectors Resolution: No, Order new enclosures using the same catalog numbers. The current enclosure has an updated DIN attachement which will accept the Tesys GV2ME starters but will not accept the old GV2M starters.
Issue: NEMA 7/9 rated enclosure for GV manual motor starters Product Line: Tesys GV Motor Starters and Protectors Environment: TeSys™ GV Manual Starters and Protectors Resolution: No hazardous duty enclosures are available for the GV product line. For explosion proof applications consider the Class 2510 Type M or Type T offering.
Issue: GV* Starter for 50/60hz application Product Line: Motor Starters and Protectors Environment: PowerPact™ Manual Starters Resolution: Yes, these starters are rated for 50/60 hertz. This applies to all GV2M, GV2ME, GV2P, GV3M, GV3ME devices.
Issue: Mounting adaptor for GV2 and LC1D contactor Product Line: Motor Starters and Protectors Environment: TeSys GV Manual Starter and Protectors Tesys D Contactors Resolution: The GV2AF3 clip has to be moved to the DC position to accommodate the contactor with a DC coil.
Issue: Identifying the spacer part number for use with a LC*D, GV2AF3, and GV2 device combination Product Line: Contactors and Starters IEC Environment: Tesys D contactors and GV manual starters Cause: Spacer required Resolution: Compensation plate catalog number GV1F03, requires 2 pieces snap together.
Issue: Padlocking device for GV2MC Enclosures Product Line: TeSys GV2 Manual Starters and Protectors Environment: n/a Resolution: Yes, use the GV2V01. When this is padlocked, the starter is automatically in and will remain in the OFF position.
