| number of terminal blocks | 30 earth (screw connection), 27 neutral (screw connection) |
|---|---|
| product brand | Clipsal |
| type of rail | 35 mm asymmetrical rail |
| [In] rated current | 63 A |
| PIM CR Type | Standard Commercial Reference |
| number of horizontal rows | 2 |
| number of 18 mm modules per row | 12 |
| enclosure mounting | flush |
| number of ways | 24 ways |
| enclosure material | technoplastic |
| Package 1 width | 3 dm |
| IK degree of protection | IK07 |
| total number of 18 mm modules | 24 |
| provided equipment | DIN rail, earth terminal block, neutral terminal block |
| Package 1 Length | 3.9 dm |
| door type | plain door |
| cable entry | knock-out top and bottom, knock-out rear |
| IP degree of protection | IP40 |
| fire resistance | door: 650 °C, back box: 850 °C |
| width | 294 mm external |
| product or component type | enclosure |
| Package 1 Weight | 1.5 kg |
| colour | white (RAL 9003) |
| enclosure type | mini enclosure for modular device |
| EU RoHS Directive | Not applicable, out of EU RoHS legal scope |
| ERP-Print Medium Description | Resimax plastic Enclosure 2 row 12 modules Flush with door |
| type of front cover | plain |
| Package 1 Height | 1 dm |
| device application | distribution |
| range | Resi MAX |
| Global Data Status | publishable |
| Modified At | 2018/04/13 05:42:14 |
| Commercial status | Commercialised |
| depth | 98 mm external |
| height | 377 mm external |
| Source Key | RMXE212F |

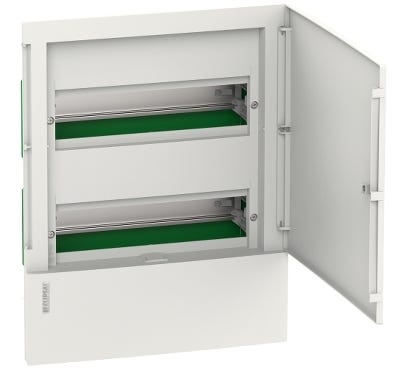

Clipsal Resi MAX Consumer Switchboard, 24 Modules, Flush Mounted - RMXE212F
Resimax Enclosure 2R 12modules Flush
4 In Stock
Need more?
This item is currently available for backorder with an estimated arrival time of 2 days
Please note this ETA is provided to us by our suppliers and could potentially be delayed due to factors outside our control. If there are any delays we will contact you to keep you updated.
Price
$89.73 $81.57
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Clipsal Resi MAX Consumer Switchboard, 24 Modules, Flush Mounted - RMXE212F
Width 306
Height 104
Depth 388
| SKU | CLIRMXE212F |
|---|---|
| Supplier No | RMXE212F |
| EAN / Barcode | 3606481334275 |
| Width | 306 |
| Height | 104.000000 |
| Length | 388.000000 |
| Width | 306.000000 |
| Brand | Clipsal |
| Range | Resi MAX |
0 of 0 Reviews
A FEW FAQS
The dimensions for the RMXE118F are - Dimensions - W402mm x H252mm x D98mm Cut out - H228mm x W378mm x D80mm
The part number for the end cap for the RMXPH124 bus-bar is RMXPE110. Some of the key features are: SLIM Comb busbar is optimised for the SLIM RCBO Resi MAX comb busbar reduces wiring effort, makes wiring easy and installations time efficient Save valuable switchboard space with the SLIM RCBO, a 2 in 1 RCBO system in a thinner module For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=RMXPE110
The combination Busbars to suit the slim line RCBO's like RCBE216/30S are the RMXPH105 ( 5 pole) , RMXPH112 (12 pole) OR RMX124 (24 pole) For more information on this product range please visit the Clipsal web site on the link provided. https://www.clipsal.com/products/detail?CatNo=RCBE216/30S&backto=/search?q=RCBE216/30S&tab-document-1=0&itemno=RCBE216/30S https://www.clipsal.com/search?q=RMXPH112
