Residual Current Circuit Breaker
Brand Name: Clipsal
Type: Type AC
Range: 4 Series
Voltage: 250 VAC
Current: 63 A
Interrupt Rating: 3 kA
Number of Poles: 2
Rated Fault Current: 30 mA
Trip Range: 10 In
Enclosure: IP40
Actuator: Non-Delayed
Length: 75 mm
Width: 36 mm
Height: 81 mm
Temperature Rating: -5 to 40 deg C
Environmental Conditions: 20000 Cycles of Mechanical
2000 Cycles of Electrical

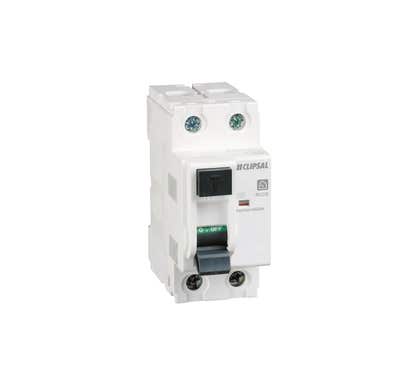

Clipsal RCD 2Mod 2P 63A 250V 30Ma - RCD263/30
Clipsal RCD263/30 Resi Max Series RCD, Type AC, 2 Pole, 63A, 30mA, 240V, 4.5KA, Din Rail Mount, 2 Module
0 In Stock
Need more?
This item is currently not available for backorder.
We can notify you when it's available again by subscribing to the back in stock notification. Enter your email address and click submit to automatically receive an email when we get more in.
Price
$56.50 $51.36
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Clipsal RCD 2Mod 2P 63A 250V 30Ma - RCD263/30
Width 400
Height 800
Depth 900
| SKU | CLIRCD263/30 |
|---|---|
| Supplier No | RCD263/30 |
| EAN / Barcode | 9318795004648 |
| Width | 94 |
| Height | 800.000000 |
| Length | 900.000000 |
| Width | 400.000000 |
| Brand | Clipsal |
| Range | Resi MAX |
| Number of Poles | 2 Pole |
| Voltage | 250 VAC |
Get Max 4 your buck
Complete protection with high performance. With Clipsal Max 4 you will find a range of enclosures, switchboards, residual current devices, miniature circuit breakers, isolators, distribution boards, overvoltage protection and accessories.
0 of 0 Reviews
A FEW FAQS
The connection of the RCD240/30 is line at the top and load at the bottom. For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=RCD240/30
The RCD440/30 id 6ka with a fuse and the 4RC440/30 is 10ka.
Replacement part no is 4RC463/30
part number is RCD440/30
The overall dimensions are 81mm (H) X 72mm (W) X 75mm (D)
You need a 2200Ω resistor going from the outgoing neutralto the outgoing white phase. be sure there in no cable in the ingoing neutral terminal as that would create a dead short. This Task should only ever be performed by a licenced electrician.
