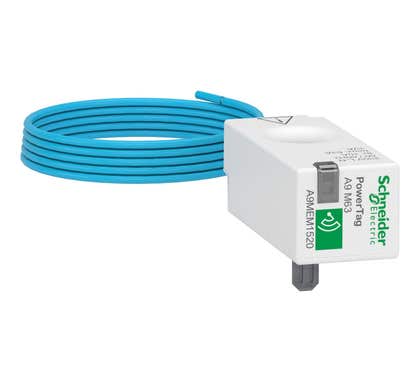

Clipsal PowerTag Energy Sensor Powertag Monoconnect 63A 1P+Wire Top And Bottom Position - A9MEM1520

This PowerTag A9 M63 1PW for Acti 9 and Multi 9 Monoconnect offers is a Class 1 wireless-communication energy sensor. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications. It has to be associated with a concentror PowerTag Link or SmartLink SI to provide circuit monitoring and diagnosis down to load level. It sends a voltage loss alarm and the current-per-phase value before being de-energized. It incorporates accurate real-time measurements of active energy, active power, current, power factor and voltage. It is dedicated to 1P devices rating less than or equal 63A. The neutral blue wire is to be connected to a neutral terminal block. It can be either mounted on the top or the bottom of the protective device. The Imax maximum current is 63A. The Ib Base current is 10A. The Saturation current is 130A. The Ist Starting current is 40mA. The Un rated voltage is Phase-to-neutral 230VAC +/- 20%. The maximum consumption is below or equal to 1VA. The degree of protection is IP20 and IK05 The Operating temperature is between -25°C to +60°C. The Storage temperature is between 40°C to +85°C. The Performance category is Class 1. PowerTag Energy 63A complies with IEC 61557-12 standard.
