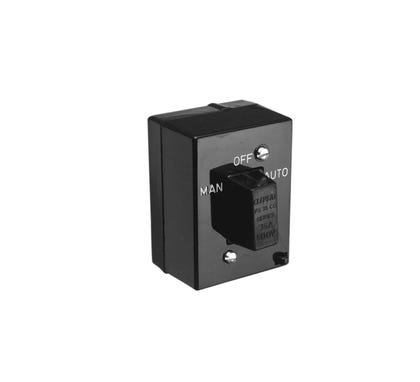

Clipsal - Panel Mount Switch Surface 35A C/Over - PS35COA-BK
Switch Surface 35A C/Over
Dispatch. 2 days
Need more?
This item is currently available for backorder with an estimated arrival time of 2 days
Please note this ETA is provided to us by our suppliers and could potentially be delayed due to factors outside our control. If there are any delays we will contact you to keep you updated.
Price
$104.62 $95.11
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Clipsal - Panel Mount Switch Surface 35A C/Over - PS35COA-BK
Width 55
Height 56
Depth 74
| SKU | CLIPS35COABK |
|---|---|
| Supplier No | PS35COA-BK |
| EAN / Barcode | 9311554014865 |
| Height | 56.000000 |
| Length | 74.000000 |
| Width | 55.000000 |
| Brand | Clipsal |
| Range | Clipsal Accessories |
| Current Rating | 35 Amps |
| Number of Poles | 1 Pole |
Clipsal - Panel Mount Switch Surface 35A C/Over - PS35COA-BK
0 of 0 Reviews
A FEW FAQS
The dimensions for the single pole change over switch PS35COA is 69mm(H) X 52mm(W) X 51mm(D). Some of the key features are: 500V AC 35A Engraved "MAN-OFF-AUTO" Provision for neon Panel cut-out 32mm X 19mm Common and Looping terminals accommodates 1 X 16mm² Neon terminal accommodates 3 X 1.5mm² Motor Rating M63 (= 15.75A motor) Certificate of suitability No. CS/598/S. For further information please visit Trade - Clipsal by Schneider Electric
Yes part number 4PS40COA can be used in 240 VOLT operation.
Yes, but a Matrix front cannot fit on a 56 series base.
The part number 4PS25CO is only marked Day/Off/Night.
The Anti-Corrosion Enclosure Screws are Stainless Steel Grade 316 for all 56 series products. 56MS Self Drilling Screw: https://www.clipsal.com/Trade/Products/ProductDetail?CatNo=56MS&c=6&ms=8&s=36&mg=12064&g=120641307&sg=120641407 For further information or support please call the Clipsal Technical Support on 1300 20 25 25
Yes, we do stock the 4PS25CO. Some of the key features are: Maximum 4 - Isolators - DIN rail mount Night, off, day switching of luminaries where daylight supplements internal lighting Incoming and outgoing terminals are screw down type and accommodate copper conductors up to 16 sq mm Auto, off, manual switching of machines Auxiliary, off, mains switching of small stand-by generators For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=4PS25CO
