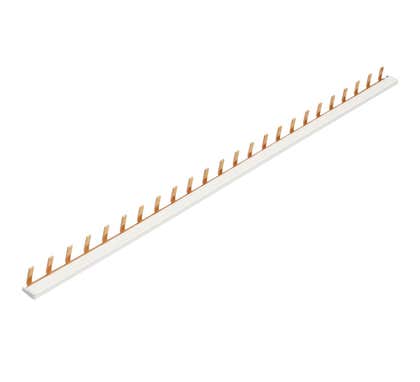

Clipsal Max 4 Max4 Pin Teeth Comb Busbar 1P 24 - 4BB1/24

Unfortunately we only have a 4BB1/24 which is 24 Poles / Modules.

21501 for a 12 module and a 21503 for the 24 module. these are a Schneider part which is equivalent to the 4bb5/26 Clipsal’s range of busbars are available in 63A - 250A versions and have been specifically designed to make installations quicker and easier. Please see following link for further information and complete range. https://www.clipsal.com/Trade/Products/ProductDetail?catno=4BB5/26

No, unfortunately there isn't a 2 pole busbar that suits the RCBM combo. However you can use the 4BB4/12 but this only connects the active and the neutral still needs to be wired. For further information please visit https://updates.clipsal.com/ClipsalOnline/Files/Brochures/I0000126.pdf

The busbar to suit use to be 4BB4/12, however that part is no longer available. It has been replaced by the schneider model 21501. Description Ratings Rated operational current at 40°C (Ie) 80 A Rated conditional short-circuit current of an assembly (Isc) Compatible with the breaking capacity of Schneider E lectric circuit breakers Insulation voltage (U i) 440 V Rated voltage (U e) 230 V (P4 + N) - 400 V (3Ph + N) Rated impulse withstand voltage (U imp) 6 kV Degree of protection IP20 F ire resistance to IE C 69 5-2-1 Self-ext inguishing 9 60°C 30 s Colour RAL 7035 Number of 18 mm modules Comb busbar 1 12
