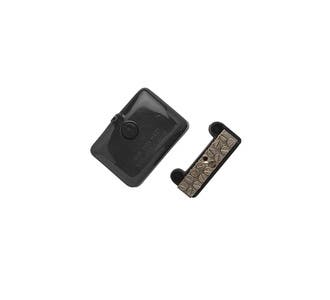

Clipsal L7 Neutral Mini Meter Link, 16 sq-mm, Black

The hole sizes for the L5 & L7 neutral links are - 6.3mm & 5.8mm , these holes will accept up to 16mm cables For further information , visit link below:- https://www.clipsal.com/Trade/search-results?q=L5 https://www.clipsal.com/Trade/search-results?q=L7

The opening for the mounting block is 7mm and the screw hole diameter is 4mm.

Issue: Checking on the DC current contact ratings for the CAD50, CAD32, CAD503, CAD323, CAD506, and CAD326 relay. Product Line: CAD Industrial Relays Environment: Relays and Timers Resolution: Inductive: 125V DC - 0.55 Amps make and break, 2.5 Amps cont. 250V DC - 0.27 Amps make and break, 2.5 amps cont. 600V DC - 0.10 Amps make and break, 2.5 Amps cont.

Issue: AC coil replacement for CAD32 and CAD50 Product Line: Relays Environment: Tesys CAD Control Relays Cause: Product selection Resolution: Volt = coil part number 12 = LXD1J7 21 = LXD1Z7 24 = LXD1B7 32 = LXD1C7 36 = LXD1CC7 42 = LXD1D7 48 = LXD1E7 60 = LXD1EE7 100 = LXD1K7 110 = LXD1F7 115 = LXD1FE7 120 = LXD1G7 127 = LXD1FC7 200 = LXD1L7 208 = LXD1LL7 220/230 = LXD1M7 230 595 21 LXD1P7 230/240 = LXD1U7 277 781 30 LXD1W7 380/400 = LXD1Q7 400 = LXD1V7 415 = LXD1N7 440 = LXD1R7 480 = LXD1T7 600 = LXD1X7 690 = LXD1Y7

Issue: Coil Voltage suffixes for Tesys D contactors LC*D 09/38 Product Line: IEC Contactors and Starters Environment: Tesys D contactors Cause: Selection Resolution: The following lists the more common voltage suffix codes for these product lines. For a more comprehensive list and to determine compatibility with a given product, refer to the catalog below. AC Volts ___Code AC Volts ___Code 12 ___ J7 208 ___ LE7 21 ___ Z7 220 ___ M7 24 ___ B7 230 ___ P7 32 ___ C7 240 ___ U7 36 ___ CC7 277 ___ W7 42 ___ D7 380 ___ Q7 48 ___ E7 400 ___ V7 60 ___ EE7 415 ___ N7 100 ___ K7 440 ___ R7 110 ___ F7 480 ___ T7 115 ___ FE7 575 ___ SC7 120 ___ G7 600 ___ X7 127 ___ FC7 690 ___ Y7 200 ___ L7 Standard Coil Low Consumption DC Volts ___Code DC Volts ___Code 12 ___ JD 5 ___ AL 24 ___ BD 12 ___ JL 36 ___ CD 20 ___ ZL 48 ___ ED 24 ___ BL 60 ___ ND 48 ___ EL 72 ___ SD 72 ___ SL 110 ___ FD 96 ___ DL 125 ___ GD 110 ___ FL 220 ___ MD 220 ___ ML 250 ___ UD 250 ___ UL 440 ___ RD
