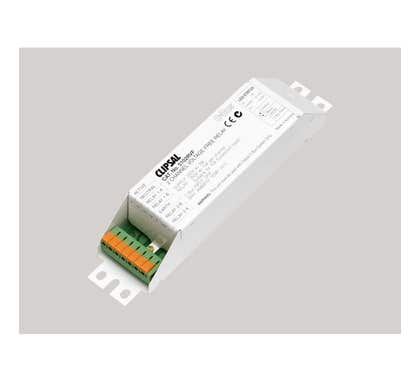

Clipsal C-Bus Control and Management System Relay C-Bus 2 Channel 10A - 5102RVF

Clipsal 5102RVF C-Bus Series Single & 2 Channel Relay, 250V, 10A, Voltage Free, Inductive Load
Dispatch. 2 days
Need more?
ITEM (1 qty)
BOX ( qty)
CARTON ( qty)
Price
$349.80 $318.00
Your order will have with items each
  • Same Day Dispatch
    Order before midday
  • 60-Day Returns
    stress-free purchasing
  • Full Supplier Warranty
    backed up product quality

Clipsal C-Bus Control and Management System Relay C-Bus 2 Channel 10A - 5102RVF

Clipsal C-Bus Control and Management System Relay C-Bus 2 Channel 10A - 5102RVF
×
  • Clipsal C-Bus Control and Management System Relay C-Bus 2 Channel 10A - 5102RVF
  • Clipsal C-Bus Control and Management System Relay C-Bus 2 Channel 10A - 5102RVF
  • Clipsal C-Bus Control and Management System Relay C-Bus 2 Channel 10A - 5102RVF
  1. Clipsal C-Bus Control and Management System Relay C-Bus 2 Channel 10A - 5102RVF
  2. Clipsal C-Bus Control and Management System Relay C-Bus 2 Channel 10A - 5102RVF
  3. Clipsal C-Bus Control and Management System Relay C-Bus 2 Channel 10A - 5102RVF
Width 200
Height 42
Depth 40
Specification
SKUCLI5102RVF
Supplier No5102RVF
EAN / Barcode9311554367077
Width198
Height42.000000
Length40.000000
Width200.000000
BrandClipsal
Clipsal C-Bus Control and Management System Relay C-Bus 2 Channel 10A - 5102RVF

Intelligent C-Bus home control systems

The best home control systems are the ones where you actually feel in control! Our smart home control range includes C-Bus® Wall Switches and Touchscreens.

You'll have complete control of your home via wall-mounted switches and touchscreens. They're easy-to-use and they look great! Oh, and we'll let you choose the style and colour to suit your tastes.

A FEW FAQS

You have several options for relays, Catalogue numbers and information below. L5504RVF, L5504RVFP** - 4 Channel voltage free relay - 10amps per channel L5508RVF, L5508RVFP** - 8 Channel voltage free relay - 10amps per channel L5512RVF, L5512RVFP** - 12 Channel voltage free relay - 10amps per channel L5504RVF20, L5504RVF20P** - 4 Channel voltage free relay - 20amps per channel L5508RELVP - 8 Channel Extra Low Voltage Relay 5101R - Single and Two Channel 250v AC 10amp relay 5102RVF - Single and Two Channel 250v AC 10amp Voltage Free Relay ** Any part number that has a 'P' after the part number for Din Rail mount units does NOT include a C-Bus 200ma Power Supply..

L5504RVF, L5508RVF and L5512RVF are rated for 10A for either resistive, inductive or fluorescent loads The L5504RVF20 is rated for 20A for either resistive, inductive or flourescent loads

The part code is L5508RVF

Yes it has a 200mA power supply.. For further information , visit link below:- https://www.clipsal.com/Trade/search-results?q=L5504RVF

Unfortunately we do not have a direct replacement for 5101R. L5504RVFP would be an alternate. Key Features 220 - 240 V AC supply voltage 47 - 53 Hz and 57 - 63 Hz supply frequency Single phase Voltage free, magnetically latched contact type Greater than 60,000 switching operations Compatible with resistive, inductive, incandescent and fluorescent loads up to 10 A 2 x 1.5 mm² or 1 x 2.5 mm² terminals 0˚C - 45˚C operating temperature 10 - 95% RH, humidity range 8 DIN modules DIN mounted 2 x RJ45 sockets connection For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=L5504RVFP

L5504RVF - DIN rail mounted 4 channel 10A relay with power supply L5504RVFP - DIN rail mounted 4 channel 10A relay without CBus power supply
