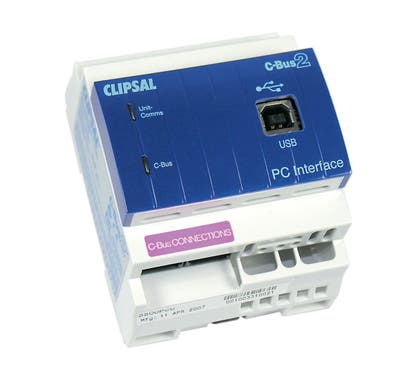

CLIPSAL C-BUS CONTROL AND MANAGEMENT SYSTEM PC INTERFACE USB DIN MOUNT CBUS - 5500PCU

C-Bus Toolkit 1.16.4 was released on 08/09/2023 C-Gate 2.11.11 This release includes C-Gate 2.11.11. For further details, refer to the C-Gate release notes later in this document. Other Fixes • SDQI-120: Toolkit crashes when adding a new network. C-Bus Toolkit 1.16.4 can be downloaded from this link https://www.se.com/ww/en/product-range/2216-spacelogic-cbus-home-automation-system/?parent-subcategory-id=88010&filter=business-5-residential-and-small-business#software-and-firmware

The latest C-Bus Commissioning Software including SpaceLogic C-Bus Toolkit, C-Bus PICED and SpaceLogic C-Bus Commissioning Software (used to commission the C-Bus DALI 2 Gateway) can be found in the Schneider EcoStruxure Exchange[1] [1] - https://ecoxpert.se.com/en/spacelogic-c-bus/software-and-firmware/software#tab/documents

Issue: User is trying to connect PC Computer to Clipsal C-Bus system through RS232 PC Interface PCI device. The user cannot establish a connection or open the network. Product Line: Clipsal C-bus (SLC series US model) Environment: C-Bus Toolkit Cause: Most PC's today do not have built in RS-232 ports. The PC must use a USB to RS-232 adaptor device or cable. It has been our experience that some of these USB to RS232 adaptors work better than others. The reasons for these differences is typically driver related. Also, it has been our experience that although a USB to serial adaptor may be known to work on one piece of equipment, it may not work on the C-Bus PCI. For example, we have seen some adaptors successfully connect to a Powerlink G3 controller and then fail to connect to a C-Bus RS-232 PCI. Resolution: It is suggested to try a USB-to-serial adaptor that is known to work with C-Bus. Below is a list of adaptors that we had successful experiences with C-Bus RS-232 PCI device. Date of Functional Verification: 16May2014 Manufacturer: Gigaware Product Name: 6ft USB-A to Serial Cable Product Model Number: 2603487 Purchase Date: 15May2014 from RadioShack, $25 Computer used with: HP Laptop running Windows 7 64-bit An alternative resolution would be to use a different device to access the C-Bus Network such as any of the following: USB PC Interface SLC5500PCU Pascal Automation Controller SLC5500PACA Ethernet Network Interface SLC5500CN2 Mark II Black and White Touch Screens

Where to download the C-Bus Toolkit 1.16.3? Release Date: 29/06/2023 Version: V1.16.3 Reference: C-Bus_Toolkit_V1.16.3 C-Gate: 2.11.10 Operating Systems: Windows 10, Windows 7, Windows 8, Windows Vista, Windows x86 / x64 It contains eDLT firmware version: V1.7.0 https://www.se.com/au/en/download/document/C-Bus_Toolkit_V1.16.3/

Issue: User is trying to connect PC Computer to Clipsal C-Bus system through RS232 PC Interface PCI device. The user cannot establish a connection or open the network. Product Line: Clipsal C-bus 5500PC Serial Interface Environment: C-Bus Toolkit Cause: Most PC's today do not have built in RS-232 ports. The PC must use a USB to RS-232 adaptor device or cable. It has been our experience that some of these USB to RS232 adaptors work better than others. The reasons for these differences is typically driver related. Also, it has been our experience that although a USB to serial adaptor may be known to work on one piece of equipment, it may not work on the C-Bus PCI. For example, we have seen some adaptors successfully connect to a Powerlink G3 controller and then fail to connect to a C-Bus RS-232 PCI. Resolution: It is suggested to try a USB-to-serial adaptor that is known to work with C-Bus these will need to contain the FTDI Chip set. Cheaper brands on the market do not use this chip and will not work correctly with the Serial Library used by C-Bus Software. Google Search: USB-RS232 FTDI This will show results from suppliers such as Element14, RS Components etc, we've had success with these adaptors in the past. An alternative resolution would be to use a different device to access the C-Bus Network such as any of the following: USB PC Interface 5500PCU Pascal Automation Controller 5500PACA Ethernet Network Interface 5500CN2 Mark II Black and White Touch Screens
