Miniature Circuit Breaker
Brand Name: Clipsal
Range: 4 Series
Voltage: 415 V
Current: 25 A
Interrupt Rating: 6 kA
Number of Poles: 3
Frequency Rating: 50/60 Hz
Curve Characterstic: C
Enclosure: IP20/IP40
Length: 73 mm
Width: 54 mm
Temperature Rating: -25 to 70 deg C
Current Limiting Class: 3

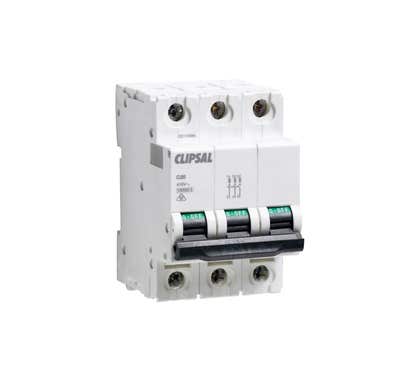

Clipsal MCB 3Module 3Pole 25A 6Ka C Curve - 4CB325/6
Clipsal 4Cb325/6 Mcb 3Module 3Pole 25A 6Ka C Curve
Dispatch. 2 days
Need more?
This item is currently available for backorder with an estimated arrival time of 2 days
Please note this ETA is provided to us by our suppliers and could potentially be delayed due to factors outside our control. If there are any delays we will contact you to keep you updated.
Price
$34.08 $30.98
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Clipsal MCB 3Module 3Pole 25A 6Ka C Curve - 4CB325/6
Width 530
Height 740
Depth 850
| SKU | CLI4CB325/6 |
|---|---|
| Supplier No | 4CB325/6 |
| EAN / Barcode | 9318795014043 |
| Standards | AS/NZS 60898 |
| Width | 52 |
| Height | 740.000000 |
| Length | 850.000000 |
| Width | 530.000000 |
| Brand | Clipsal |
| Range | Max4 |
| Number of Poles | 3 Pole |
| Voltage | 415 V |
Get Max 4 your buck
Complete protection with high performance. With Clipsal Max 4 you will find a range of enclosures, switchboards, residual current devices, miniature circuit breakers, isolators, distribution boards, overvoltage protection and accessories.
0 of 0 Reviews
A FEW FAQS
If the cable is Rigid/ Semi Rigid the 4CB3125/10 breaker will take a cable from 1mm²- 50mm². OR If the cable is Flexible or Ferrule the 4CB3125/10 breaker will take a cable from 1.5mm²- 35mm².
The DC operating voltage that can be applied to 4CB150/6 is - 48VDC For further information, visit the link below:- https://www.clipsal.com/Trade/search-results?q=4CB150/6
4CB220/6DC is a dedicated D.C, polarized circuit breaker and cannot be used for alternating currents (A.C.) or A.C. application. For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=4CB220/6DC Other references: 4CB206/6DC , 4CB210/6DC , 4CB216/6DC , 4CB225/6DC , 4CB232/6DC , 4CB240/6DC
4CB263/6 is a 2 pole, 63A, 6KA, C- curve circuit breaker. Key Features Unique new white finish for a fresh modern look Base module = 18 mm wide. Compact standardised and consistent module dimensions Lift-up terminals. Safer ‘no hot spot’ terminations and all cable strands are locked in Cable automatically guided to the correct position: terminals with guard Fast closure The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety Same housing as AC type MCBs. Uniformity in space requirements and installation Superior, safe and reliable DC breaking per pole Used with marine, telecommunications, solar power, emergency power, battery power Excellent breaking capability for its compact size 36 mm modular spacing For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=4CB263/6
