    5. Schneider TeSys Tesys D Thermal Overload 0.63-1.0A Cl10A - LRD05

    Schneider TeSys Tesys D Thermal Overload 0.63-1.0A Cl10A - LRD05

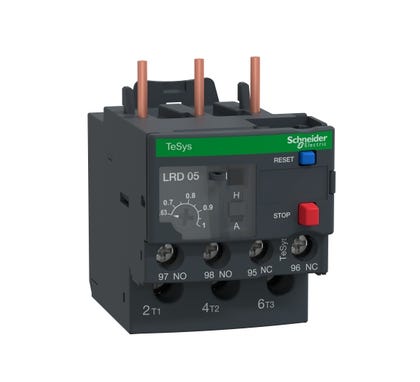

    Schneider LRD05 TeSys Deca Series Thermal Overload Relay, 0.63 - 1A, For Use with LC1-D09 to LC1-D38, Trip Class 10A, Auto/Manual Reset
    Dispatch. 2 days
    Need more?
    ITEM (1 qty)
    BOX ( qty)
    CARTON ( qty)
    Price
    $53.53 $48.66
    Your order will have with items each
    • Same Day Dispatch
      Order before midday
    • 60-Day Returns
      stress-free purchasing
    • Full Supplier Warranty
      backed up product quality
    Email

    Schneider TeSys Tesys D Thermal Overload 0.63-1.0A Cl10A - LRD05

    Schneider TeSys Tesys D Thermal Overload 0.63-1.0A Cl10A - LRD05
    • Schneider TeSys Tesys D Thermal Overload 0.63-1.0A Cl10A - LRD05
    • Schneider TeSys Tesys D Thermal Overload 0.63-1.0A Cl10A - LRD05
    ×
    • Schneider TeSys Tesys D Thermal Overload 0.63-1.0A Cl10A - LRD05
    1. Schneider TeSys Tesys D Thermal Overload 0.63-1.0A Cl10A - LRD05
    Width 77
    Height 49
    Depth 88
    Specification
    SKUSCHLRD05
    Supplier NoLRD05
    EAN / Barcode3389110346756
    StandardsEN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4;GB/T 14048.5;EN 50495
    Height49.000000
    Length88.000000
    Width77.000000
    warranty18 months
    BrandSchneider Electric
    RangeTeSys
    Current Rating10 Amps
    TeSys LRD thermal overload relay, 1A/690V, thermal setting range 0.63-1A, tripping class 10A, for protection of 3-phase motors 0.25-0.37kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

    Features

    Manual or automatic reset Sealable flap Pre-wiring kit Direct mounting with TeSys D contactors Terminal block for separate mounting Remote electrical reset available as an option Connectors: spring terminal, screw clamp, terminal block EverLink (LRD3) Class 10 A & 20

    Applications

    TeSys LRD relays are used across industry, infrastructure, building, etc., to provide: Protection against motor overload and loss of phase. The perfect complement of magnetic only circuit breakers to manage thermal protection for motors. Selectable manual, remote or auto reset tripping options for better process management.

    Schneider Electric

    Schneider Electric is a global leader in digital transformation for energy management and automation. We offer a range of services from energy and sustainability consulting to optimising the lifecycle of your assets. Our technologies help you to improve efficiency, reduce costs, and meet your sustainability goals. Whether you are looking to power your home or business, we have the solutions to meet your needs.

    Schneider Electric provides a comprehensive range of circuit protection solutions to ensure the safety and reliability of your electrical systems. Our Miniature Circuit Breakers (MCBs) offer reliable protection against overloads and short circuits in residential, commercial and industrial applications. Our switchboards are designed for easy installation, scalability and flexibility, allowing you to build a customised solution that meets your specific requirements. Our isolating switches are compact, reliable and durable, making them ideal for use in demanding environments. We also offer a range of contactors and equipment, including thermal overload relays, to provide protection and control for your motors and other electrical equipment. Trust Schneider Electric for quality, reliable and innovative circuit protection solutions. Browse our range of products at Direct Wholesale today.

    Visit Schneider Electric
    0 of 0 Reviews

    A FEW FAQS

    Product Line: Tesys D line Overload Relays Resolution: The normally closed overload contact are terminals 95 & 96; and the normally open overload contact are terminals 97 & 98. T1 T2 and T3 are the load terminals. The normally closed control circuit contact will open when there is a fault, this contact is typically used in series with the control circuit. The normally open trip signal contact closes when a fault occurs which is typically used to control a pilot light, or alarm.

    The LAD7B106 fits the LRD01 to LRD35 range.

    The alternative is LRD05 (Note - these are not direct replacements)

    Issue: LA7D305 and LAD7305 Difference Product Line: IEC contactors and starters Environment: LRD Accessories Cause: Choosing the correct part number Resolution: LAD7305 is for use on LRD01 to LRD35 , LR3D01 to LR3D35, and LRD313 to LRD365. LA7D305 is for use on all other relays (except LRD01 to LRD35 and LR3D01 to LR3D35).

    Issue: Identifying differences between two similar part numbers Product Line: IEC contactors and starters Environment: Products sold and used in the United States Cause: Identifying differences between two similar part numbers Resolution: Both will remotely stop (trip) or electrically reset the overload, however; LAD703 is used on Tesys overload LRD01 through LRD35 and LR3D01 to LR3D35. LA7D03 is used on all other LR*D overload relays other than LRD01 to LRD35 and LR3D01 to LR3D35.

    This LRD range cannot be put back to Manual reset, once the overlaod has been changed from Manual (factory default) to Automatic.
