Schneider Tesys D Thermal Overload 9-13A Cl10A - LRD16
Schneider LRD16 TeSys Deca Series Thermal Overload Relay, 9 - 13A, For Use with LC1-D12 to LC1-D38, Trip Class 10A, Auto/Manual Reset
3 In Stock
Need more?
This item is currently available for backorder with an estimated arrival time of 2 days
Please note this ETA is provided to us by our suppliers and could potentially be delayed due to factors outside our control. If there are any delays we will contact you to keep you updated.
Price
$45.65 $41.50
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Schneider Tesys D Thermal Overload 9-13A Cl10A - LRD16
Width 78
Height 50
Depth 90
| SKU | SCHLRD16 |
|---|---|
| Supplier No | LRD16 |
| EAN / Barcode | 3389110346824 |
| Standards | EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4;GB/T 14048.5;EN 50495 |
| Height | 50.000000 |
| Length | 90.000000 |
| Width | 78.000000 |
| warranty | 18 months |
| Brand | Schneider Electric |
| Range | TeSys |
| Current Rating | 10 Amps |

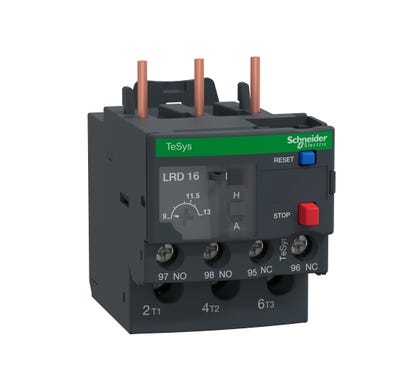

TeSys LRD thermal overload relay, 13A/690V, thermal setting range 9-13A, tripping class 10A, for protection of 3-phase motors 5.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D12-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Schneider Electric
Schneider Electric is a global leader in digital transformation for energy management and automation. We offer a range of services from energy and sustainability consulting to optimising the lifecycle of your assets. Our technologies help you to improve efficiency, reduce costs, and meet your sustainability goals. Whether you are looking to power your home or business, we have the solutions to meet your needs.
Schneider Electric provides a comprehensive range of circuit protection solutions to ensure the safety and reliability of your electrical systems. Our Miniature Circuit Breakers (MCBs) offer reliable protection against overloads and short circuits in residential, commercial and industrial applications. Our switchboards are designed for easy installation, scalability and flexibility, allowing you to build a customised solution that meets your specific requirements. Our isolating switches are compact, reliable and durable, making them ideal for use in demanding environments. We also offer a range of contactors and equipment, including thermal overload relays, to provide protection and control for your motors and other electrical equipment. Trust Schneider Electric for quality, reliable and innovative circuit protection solutions. Browse our range of products at Direct Wholesale today.
Visit Schneider Electric 0 of 0 Reviews
A FEW FAQS
Product Line: Tesys D line Overload Relays Resolution: The normally closed overload contact are terminals 95 & 96; and the normally open overload contact are terminals 97 & 98. T1 T2 and T3 are the load terminals. The normally closed control circuit contact will open when there is a fault, this contact is typically used in series with the control circuit. The normally open trip signal contact closes when a fault occurs which is typically used to control a pilot light, or alarm.
Overload to suit LE3D12N7 will be either LRD12, LRD14 or LRD16 depending on application.
The part code is LRD16 overload
Use a PDL56DOL9LOBGY and a LRD16 overload.
Either go for the LRD12 (5.0-8.0A) or the LRD14 (7.0-10.0A) depending on the size of the motor. This will not fit the old 56 Series DOL starter
All of the LE1D12U7R** parts have now been Divide into two parts enclosed starter and thermal overload see table for the new part numbers/ format: Old Part Numbers Enclosed Starter Thermal Overload LE1D12U7R10 LE1D12U7S48 plus LRD10 LE1D12U7R12 LE1D12U7S48 plus LRD12 LE1D12U7R14 LE1D12U7S48 plus LRD14 LE1D12U7R16 LE1D12U7S48 plus LRD16 For further information please visit https://www.clipsal.com/Trade
