    Schneider Tesys D Thermal Overload 5.5-8.0A Cl10A - LRD12

    Schneider LRD12 TeSys Deca Series Thermal Overload Relay, 5.5 - 8A, For Use with LC1-D09 to LC1-D38, Trip Class 10A, Auto/Manual Reset
    4 In Stock
    Need more?
    ITEM (1 qty)
    BOX (N/A qty)
    CARTON (N/A qty)
    Price
    $56.17 $51.06
    Same day dispatch ends in : mins
    Your order will have with items each
    • Same Day Dispatch
      Order before midday
    • 60-Day Returns
      stress-free purchasing
    • Full Supplier Warranty
      backed up product quality
    Email
    Schneider Tesys D Thermal Overload 5.5-8.0A Cl10A - LRD12
    Schneider Tesys D Thermal Overload 5.5-8.0A Cl10A - LRD12
    • Schneider Tesys D Thermal Overload 5.5-8.0A Cl10A - LRD12
    • Schneider Tesys D Thermal Overload 5.5-8.0A Cl10A - LRD12
    • Schneider Tesys D Thermal Overload 5.5-8.0A Cl10A - LRD12
    ×
    • Schneider Tesys D Thermal Overload 5.5-8.0A Cl10A - LRD12
    • Schneider Tesys D Thermal Overload 5.5-8.0A Cl10A - LRD12
    1. Schneider Tesys D Thermal Overload 5.5-8.0A Cl10A - LRD12
    2. Schneider Tesys D Thermal Overload 5.5-8.0A Cl10A - LRD12
    Width 77
    Height 50
    Depth 90
    Specification
    SKUSCHLRD12
    Supplier NoLRD12
    EAN / Barcode3389110346800
    StandardsEN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4;GB/T 14048.5;EN 50495
    Height50.000000
    Length90.000000
    Width77.000000
    warranty18 months
    BrandSchneider Electric
    RangeTeSys
    Current Rating10 Amps

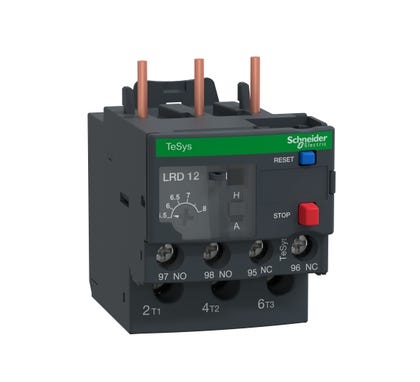

    TeSys LRD thermal overload relay, 8A/690V, thermal setting range 5.5-8A, tripping class 10A, for protection of 3-phase motors 3kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

    Features

    Manual or automatic reset Sealable flap Pre-wiring kit Direct mounting with TeSys D contactors Terminal block for separate mounting Remote electrical reset available as an option Connectors: spring terminal, screw clamp, terminal block EverLink (LRD3) Class 10 A & 20

    Applications

    TeSys LRD relays are used across industry, infrastructure, building, etc., to provide: Protection against motor overload and loss of phase. The perfect complement of magnetic only circuit breakers to manage thermal protection for motors. Selectable manual, remote or auto reset tripping options for better process management.

    Schneider Electric

    Schneider Electric is a global leader in digital transformation for energy management and automation. We offer a range of services from energy and sustainability consulting to optimising the lifecycle of your assets. Our technologies help you to improve efficiency, reduce costs, and meet your sustainability goals. Whether you are looking to power your home or business, we have the solutions to meet your needs.

    Schneider Electric provides a comprehensive range of circuit protection solutions to ensure the safety and reliability of your electrical systems. Our Miniature Circuit Breakers (MCBs) offer reliable protection against overloads and short circuits in residential, commercial and industrial applications. Our switchboards are designed for easy installation, scalability and flexibility, allowing you to build a customised solution that meets your specific requirements. Our isolating switches are compact, reliable and durable, making them ideal for use in demanding environments. We also offer a range of contactors and equipment, including thermal overload relays, to provide protection and control for your motors and other electrical equipment. Trust Schneider Electric for quality, reliable and innovative circuit protection solutions. Browse our range of products at Direct Wholesale today.

    Visit Schneider Electric
    0 of 0 Reviews

    A FEW FAQS

    Product Line: Tesys D line Overload Relays Resolution: The normally closed overload contact are terminals 95 & 96; and the normally open overload contact are terminals 97 & 98. T1 T2 and T3 are the load terminals. The normally closed control circuit contact will open when there is a fault, this contact is typically used in series with the control circuit. The normally open trip signal contact closes when a fault occurs which is typically used to control a pilot light, or alarm.

    Overload to suit LE3D12N7 will be either LRD12, LRD14 or LRD16 depending on application.

    The LAD7B106 fits the LRD01 to LRD35 range.

    Either go for the LRD12 (5.0-8.0A) or the LRD14 (7.0-10.0A) depending on the size of the motor. This will not fit the old 56 Series DOL starter

    All of the LE1D12U7R** parts have now been Divide into two parts enclosed starter and thermal overload see table for the new part numbers/ format: Old Part Numbers Enclosed Starter Thermal Overload LE1D12U7R10 LE1D12U7S48 plus LRD10 LE1D12U7R12 LE1D12U7S48 plus LRD12 LE1D12U7R14 LE1D12U7S48 plus LRD14 LE1D12U7R16 LE1D12U7S48 plus LRD16 For further information please visit https://www.clipsal.com/Trade

    The part code is LRD16 overload
