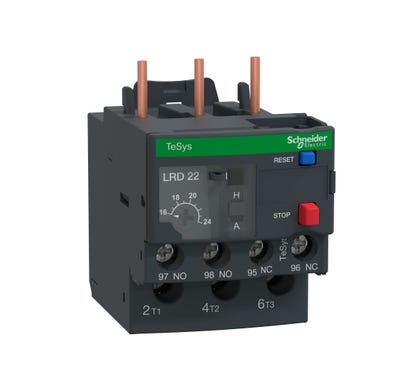

    Schneider Tesys D Thermal Overload 16-24A Cl10A - LRD22

    Schneider LRD22 TeSys Deca Series Thermal Overload Relay, 16 - 24A, For Use with LC1-D25 to LC1-D38, Trip Class 10A, Auto/Manual Reset
    Dispatch. 2 days
    Need more?
    ITEM (1 qty)
    BOX ( qty)
    CARTON ( qty)
    Price
    $63.54 $57.76
    Your order will have with items each
    • Same Day Dispatch
      Order before midday
    • 60-Day Returns
      stress-free purchasing
    • Full Supplier Warranty
      backed up product quality
    Email
    Schneider Tesys D Thermal Overload 16-24A Cl10A - LRD22
    Schneider Tesys D Thermal Overload 16-24A Cl10A - LRD22
    • Schneider Tesys D Thermal Overload 16-24A Cl10A - LRD22
    • Schneider Tesys D Thermal Overload 16-24A Cl10A - LRD22
    ×
    • Schneider Tesys D Thermal Overload 16-24A Cl10A - LRD22
    1. Schneider Tesys D Thermal Overload 16-24A Cl10A - LRD22
    Width 76
    Height 50
    Depth 88
    Specification
    SKUSCHLRD22
    Supplier NoLRD22
    EAN / Barcode3389110346848
    StandardsEN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4;GB/T 14048.5;EN 50495
    Height50.000000
    Length88.000000
    Width76.000000
    warranty18 months
    BrandSchneider Electric
    RangeTeSys
    Current Rating10 Amps
    TeSys LRD thermal overload relay, 24A/690V, thermal setting range 16-24A, tripping class 10A, for protection of 3-phase motors 11kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D25-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

    Features

    Manual or automatic reset Sealable flap Pre-wiring kit Direct mounting with TeSys D contactors Terminal block for separate mounting Remote electrical reset available as an option Connectors: spring terminal, screw clamp, terminal block EverLink (LRD3) Class 10 A & 20

    Applications

    TeSys LRD relays are used across industry, infrastructure, building, etc., to provide: Protection against motor overload and loss of phase. The perfect complement of magnetic only circuit breakers to manage thermal protection for motors. Selectable manual, remote or auto reset tripping options for better process management.

    Schneider Electric

    Schneider Electric is a global leader in digital transformation for energy management and automation. We offer a range of services from energy and sustainability consulting to optimising the lifecycle of your assets. Our technologies help you to improve efficiency, reduce costs, and meet your sustainability goals. Whether you are looking to power your home or business, we have the solutions to meet your needs.

    Schneider Electric provides a comprehensive range of circuit protection solutions to ensure the safety and reliability of your electrical systems. Our Miniature Circuit Breakers (MCBs) offer reliable protection against overloads and short circuits in residential, commercial and industrial applications. Our switchboards are designed for easy installation, scalability and flexibility, allowing you to build a customised solution that meets your specific requirements. Our isolating switches are compact, reliable and durable, making them ideal for use in demanding environments. We also offer a range of contactors and equipment, including thermal overload relays, to provide protection and control for your motors and other electrical equipment. Trust Schneider Electric for quality, reliable and innovative circuit protection solutions. Browse our range of products at Direct Wholesale today.

    Visit Schneider Electric
    0 of 0 Reviews

    A FEW FAQS

    Product Line: Tesys D line Overload Relays Resolution: The normally closed overload contact are terminals 95 & 96; and the normally open overload contact are terminals 97 & 98. T1 T2 and T3 are the load terminals. The normally closed control circuit contact will open when there is a fault, this contact is typically used in series with the control circuit. The normally open trip signal contact closes when a fault occurs which is typically used to control a pilot light, or alarm.

    LR3D21 is a non differential overload...https://eshop.schneider-electric.com/product.aspx?org=21&lang=1&dist=276&prod_id=LR3D21 LRD21 is a differential overload............https://eshop.schneider-electric.com/product.aspx?org=21&lang=1&dist=276&prod_id=LRD21

    either the LRD21, 12 to 18 amps. Or the LRD22, 16 to 24 amps.

    The LAD7B106 fits the LRD01 to LRD35 range.

    This is part of the old Clipsal 6 series contactors which are no longer available .It is an old Clipsal overload, which would need to be changed over to a Schneider LC1D range contactor with overload to suit . Over load to use is either LRD21 for 12-18A or LRD16 for 9-13A For correct selection of contactor and overload required please call Schneider Electric on 1300 369 233

    Either go for the LRD12 (5.0-8.0A) or the LRD14 (7.0-10.0A) depending on the size of the motor. This will not fit the old 56 Series DOL starter
