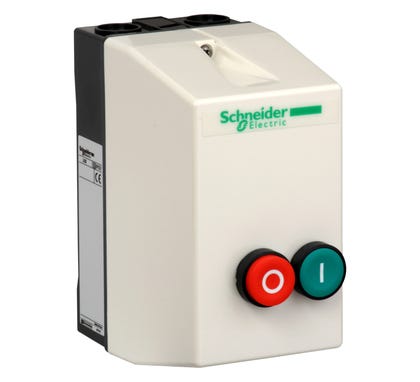

Schneider TeSys D Enclos 1S 12A 415V 50/60 - LE1D12N7S48
Schneider LE1D12N7S48 TeSys LE Series Direct On Line Starter, DOL Starter, Stop/Start, Less Overload, 4KW, 415Vac, Surface Mount, Grey
Dispatch. 2 days
Need more?
This item is currently available for backorder with an estimated arrival time of 2 days
Please note this ETA is provided to us by our suppliers and could potentially be delayed due to factors outside our control. If there are any delays we will contact you to keep you updated.
Price
$81.85 $74.41
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Schneider TeSys D Enclos 1S 12A 415V 50/60 - LE1D12N7S48
Width 150
Height 155
Depth 205
| SKU | SCHLE1D12N7S48 |
|---|---|
| Supplier No | LE1D12N7S48 |
| EAN / Barcode | 3389110411539 |
| Height | 155.000000 |
| Length | 205.000000 |
| Width | 150.000000 |
| Brand | Schneider Electric |
| Range | TeSys |
D Enclos 1S 12A 415V 50/60
Schneider Electric
Schneider Electric is a global leader in digital transformation for energy management and automation. We offer a range of services from energy and sustainability consulting to optimising the lifecycle of your assets. Our technologies help you to improve efficiency, reduce costs, and meet your sustainability goals. Whether you are looking to power your home or business, we have the solutions to meet your needs.
Schneider Electric provides a comprehensive range of circuit protection solutions to ensure the safety and reliability of your electrical systems. Our Miniature Circuit Breakers (MCBs) offer reliable protection against overloads and short circuits in residential, commercial and industrial applications. Our switchboards are designed for easy installation, scalability and flexibility, allowing you to build a customised solution that meets your specific requirements. Our isolating switches are compact, reliable and durable, making them ideal for use in demanding environments. We also offer a range of contactors and equipment, including thermal overload relays, to provide protection and control for your motors and other electrical equipment. Trust Schneider Electric for quality, reliable and innovative circuit protection solutions. Browse our range of products at Direct Wholesale today.
Visit Schneider Electric 0 of 0 Reviews
A FEW FAQS
The above part is no longer available like this, but is made up of LE1D12N7S48 + LRD05 3 Pole Reversing and Non Reversing DOL Starters Model D DOL Non-Reversing Starters with Overload Purchased Separately IP65 Polycarbonate Enclosure (4) 3-phase 415V AC3 kW: 0.37 Overload Range A: 0.63 to 1.0 Overload*: LRD05 Starter(1) *For overload pricing please refer to the Overload Relays section in Power Control and Protection
The empty enclosure DE1DS1 does suit the LE1D12U7S48 enclosed dole starter. DE1DS1 suits LE1D12...09 DE1DS2 suits LE1D18...35. For further information please visit https://www.se.com/au/en/product/DE1DS1/tesys-le---enclosure-for-dol-starter---with-2-pushbuttons/
Remove the signal supply wire from L3 and connect a supply wire, from an external source, to the upstream "line side" of the electrical contact block on the back of the "start" pushbutton. Then the downstream "load side" of the same "start" pushbutton electrical contact will normally be connected to terminal number "A1" on the coil of the contactor. Also, because of the geographical layout of the LE1D12U7S48 starter unit, then the normally closed (N/C) electrical contact inside the thermal overload unit will be connected between the neutral and terminal number "A2" on the same contactor.
The part number for a DOL non reversing starter for 13amp 3 phase load - LE1D12N7S48 & LRD16 For further information , visit link below:- https://www.schneider-electric.com.au/en/search/LE1D12N7S48 https://www.schneider-electric.com.au/en/search/LRD16
The replacement part number for the old DOL motor starter LE1D12N7R12 is - ​LE1D12N7S48 For further information , visit link below:- https://www.schneider-electric.com.au/en/search/LE1D12N7S48
LE1D12U7S48EM is an example part# for the teyss D DOl with the latching E-stop. "EM" at the end of the part# for LE1D12*****
