Schneider TeSys 3P Tesys D Contactor 12A Ac3 5.5Kw 1No 1Nc 415Vac Coil - LC1D12N7

D Contactor, 3P(3 NO), AC-3, <= 440V, 12A, 415VAC Coil
Dispatch. 2 days
Need more?
ITEM (1 qty)
BOX ( qty)
CARTON ( qty)
Price
$47.52 $43.20
Your order will have with items each
  • Same Day Dispatch
    Order before midday
  • 60-Day Returns
    stress-free purchasing
  • Full Supplier Warranty
    backed up product quality

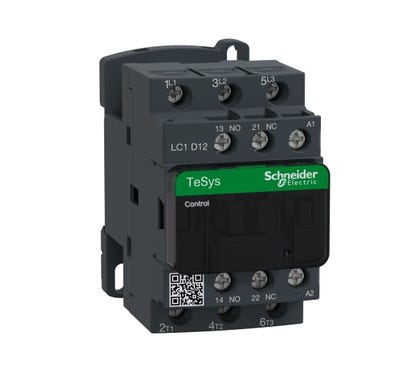

Schneider TeSys 3P Tesys D Contactor 12A Ac3 5.5Kw 1No 1Nc 415Vac Coil - LC1D12N7
Schneider TeSys 3P Tesys D Contactor 12A Ac3 5.5Kw 1No 1Nc 415Vac Coil - LC1D12N7
×
  • Schneider TeSys 3P Tesys D Contactor 12A Ac3 5.5Kw 1No 1Nc 415Vac Coil - LC1D12N7
  1. Schneider TeSys 3P Tesys D Contactor 12A Ac3 5.5Kw 1No 1Nc 415Vac Coil - LC1D12N7
Width 112
Height 52
Depth 92
Specification
SKUSCHLC1D12N7
Supplier NoLC1D12N7
EAN / Barcode3389110349290
Height52.000000
Length92.000000
Width112.000000
warranty18 months
BrandSchneider Electric
RangeTeSys
TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides a 415V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Features

AC & DC Coils 50/60 Hz available for whole range DC low consumption with direct compatibility with 100 mA I/O PLC card from 9 to 38 A DC low consumption with direct compatibility with 500 mA I/O PLC card from 40 to 80 A using TeSys D Green BBE 24 V electronic coil Various types of connection available: o Screw clamp terminals o Everlink (40 to 80 A) o Spring terminals (9 to 38 A and on control terminal up to 65 A) o Lugs terminals o Faston terminal (9 to 12 A) High making and breaking capacity 1 NO & 1 NC integrated auxiliary contact in all 3-pole and 4-pole contactors Up to 30 million mechanical operation cycles Electrical cycles up to 3600 cycles per hour at ambient temperature No derating up to 3000 m altitude Working temperature: -25 to 60 Dimensions: 4 width sizes available to cover all ratings 45 mm to 38 A 55 mm from 40 to 65 A 85 mm from 80 to 95 A 120 mm from 115 to 150 A

Applications

TeSys D contactors have been designed for perfect integration in control systems, specific references BL or BBE compatible with digital PLC I/O 100 mA or 500 mA These contactors can be used to create motor starters for any type of application

Schneider Electric

Schneider Electric is a global leader in digital transformation for energy management and automation. We offer a range of services from energy and sustainability consulting to optimising the lifecycle of your assets. Our technologies help you to improve efficiency, reduce costs, and meet your sustainability goals. Whether you are looking to power your home or business, we have the solutions to meet your needs.

Schneider Electric provides a comprehensive range of circuit protection solutions to ensure the safety and reliability of your electrical systems. Our Miniature Circuit Breakers (MCBs) offer reliable protection against overloads and short circuits in residential, commercial and industrial applications. Our switchboards are designed for easy installation, scalability and flexibility, allowing you to build a customised solution that meets your specific requirements. Our isolating switches are compact, reliable and durable, making them ideal for use in demanding environments. We also offer a range of contactors and equipment, including thermal overload relays, to provide protection and control for your motors and other electrical equipment. Trust Schneider Electric for quality, reliable and innovative circuit protection solutions. Browse our range of products at Direct Wholesale today.

Visit Schneider Electric

A FEW FAQS

Issue: Identifying replacement coils for tesys D non-reversing and reversing conactors Product Line: IEC Contactors and Starters Environment: Products sold and used in the United States Cause: Replacement coil is needed Resolution: DC replacement coils are not available. AC Coils are 50/60 hertz for voltages as listed below: Volts - Part Number 12 ____ LXD1J7 21 ____ LXD1Z7 24 ____ LXD1B7 32 ____ LXD1C7 36 ____ LXD1CC7 42 ____ LXD1D7 48 ____ LXD1E7 60 ____ LXD1EE7 100 ___ LXD1K7 ( never brought to North America ) 110 ___ LXD1F7 115 ___ LXD1FE7 120 ___ LXD1G7 127 ___ LXD1FC7 200 ___ LXD1L7 208 ___ LXD1LE7 220 ___ LXD1M7 230 ___ LXD1P7 240 ___ LXD1U7 277 ___ LXD1W7 380 ___ LXD1Q7 400 ___ LXD1V7 415 ___ LXD1N7 440 ___ LXD1R7 480 ___ LXD1T7 575 ___ LXD1SC7 600 ___ LXD1X7 690 ___ LXD1Y7 Note: A contactor with an AC coil can be changed to a different AC voltage coil, IE you can take an LC1D09 with a 120VAC coil and put a 24VAC coil in it instead. An AC device cannot be switched to a DC coil, and a DC device cannot be switches to an AC coil.

Issue: Determine the control coil terminal marking and location on LC1D09 to LC1D38 contactor Product Line: Tesys D Contactors Environment: IEC contactors Resolution: The coil terminals are marked A1 and A2, you can see them on the front of the contactor on the white part (control section). They are next to the auxiliary contact (13/14, 21/22) terminals.

Issue: Identifying maximum voltage of an LC1D contactor Product Line: TeSys D Contactors Environment: IEC contactors and starters used in North America Cause: n/a Resolution: IThe maximum voltage per UL and CSA is 600VAC.

Issue:​ What is the altitude derating for a TeSys D-Line contactor? Product Line: Digest 177 Section 18 : Contactors and Starters, IEC Environment: North American Products Resolution: The contactors are fully rated up to 3000 meters. Following are derating multipliers for altitudes above 3000 meters for both voltage and current: Voltage 3500m x 0.90 4000m x 0.80 4500m x 0.70 5000m x 0.60 Current 3500m x 0.92 4000m x 0.90 4500m x 0.88 5000m x 0.86 For example, an LC1D80 at 5000 meters: - The maximum rated operational voltage is 1,000V (IEC947-4) and 690V (UL/CSA). At 5000 meters it becomes 1000V x 0.6 = 600V (IEC947-4) and 690V x 0.6 = 414V (UL/CSA). - The maximum rated operational AC3 current is 80A. At 5000 meters it becomes 80A x 0.86 = 68A.

Issue: Power terminal lug data required for the 9 and 12 amp rated Tesys D contactors Product Line: IEC Contactors and Starters Environment: Tesys D Contactors Resolution: For contactors with screw clamp terminals: stranded cable w/o cable end : One or Two #18-10 AWG per terminal. stranded cable w/cable end: One or Two #18-10 AWG per terminal. solid cable: One or Two #18-8 AWG per terminal.

Issue: Mounting adaptor for GV2 and LC1D contactor Product Line: Motor Starters and Protectors Environment: TeSys GV Manual Starter and Protectors Tesys D Contactors Resolution: The GV2AF3 clip has to be moved to the DC position to accommodate the contactor with a DC coil.
