Earth Leakage Mcb 1P 10A 30Ma Type A

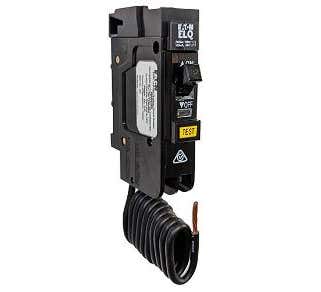

Eaton ELQ110C3TD-A ELQ Earth Leakage Breaker Combined MCB/RCD divices, 1P, 10A, 30mA, 6kA, Type A
2 In Stock
Need more?
ITEM (1 qty)
BOX ( qty)
CARTON ( qty)
Price
$154.00 $140.00
Same day dispatch ends in : mins
Your order will have with items each
  • Same Day Dispatch
    Order before midday
  • 60-Day Returns
    stress-free purchasing
  • Full Supplier Warranty
    backed up product quality

Earth Leakage Mcb 1P 10A 30Ma Type A

Eaton ELQ110C3TD-A ELQ Earth Leakage Breaker Combined MCB/RCD divices
×
  • Eaton ELQ110C3TD-A ELQ Earth Leakage Breaker Combined MCB/RCD divices
  1. Eaton ELQ110C3TD-A ELQ Earth Leakage Breaker Combined MCB/RCD divices
Width 25
Height 113
Specification
SKUEATELQ110C3TD-A
Supplier NoELQ110C3TD-A
Height113.000000
Width25.000000
BrandSAL
Number of Poles10 Pole

Eaton EATELQ110C3TD-A ELQ Earth Leakage Breaker Combined MCB/RCD divices, 1P, 10A, 30mA, 6kA, Type A

The ELQ breaker (safety switch) combines overload, short circuit and residual current protection (earth leakage) in one compact unit in a single pole configuration. This style of circuit breaker, which has become mandatory in new installations, safeguards people from the danger of electric shock by instantly interrupting the electrical circuit to the load when a fault current to earth exceeds the rated sensitivity which is usually expressed in milli-Amp (mA).

Features:

• Combined MCB/RCD device
• Permanent connected neutral conductor (950mm)
• Rating breaking capacity 6kArms
• Complies with AS/NZS 3190 & AS/NZS 311
• Australian approval number NSW27675
• Yellow test button for easy identification of type A device
