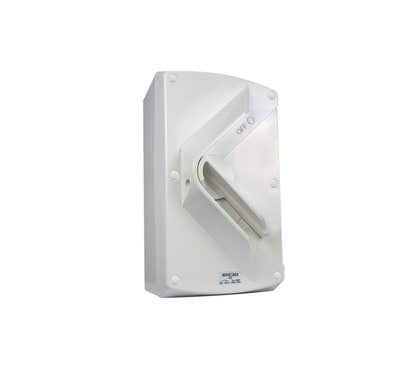

Isolator Switch
Brand Name: Clipsal
Range: Weathershield WHC Series
Number of Poles: 3
Current: 63 A
Voltage: 415 V
Number of Ways: 1
Number of Gangs: 1
Operation Type: Rotary
Color: Resistant Grey
Mounting Type: Surface
Degree of Protection: IP66
Dimensions: 114 mm x 230 mm x 130 mm
Clipsal Isolator IP66 Weatherproof 3P 63A 415V Whc Series Resistant Grey - WHC363-RG
Clipsal Whc363Rg Isolator Ip66 3P 63A 415V Whc Series R/G
3 In Stock
Need more?
This item is currently available for backorder with an estimated arrival time of 2 days
Please note this ETA is provided to us by our suppliers and could potentially be delayed due to factors outside our control. If there are any delays we will contact you to keep you updated.
Price
$191.61 $174.19
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Clipsal Isolator IP66 Weatherproof 3P 63A 415V Whc Series Resistant Grey - WHC363-RG
Width 120
Height 135
Depth 238
| SKU | CLIWHC363RG |
|---|---|
| Supplier No | WHC363-RG |
| EAN / Barcode | 9311554644239 |
| Height | 135.000000 |
| Length | 238.000000 |
| Width | 120.000000 |
| Brand | Clipsal |
| Range | Weathershield |
| Colour | Resistant Grey |
| IP Rating | IP66 |
| Voltage | 415 V |
| Number of Poles | 3 Pole |
Power points and switches that can handle the elements
Our outdoor range of weather-proof power points and electrical switches are built tough. They're dust- and water-resistant, and designed to resist the corrosion and colour fading that most other brands succumb to during Australia's harsh summers and winters.
0 of 0 Reviews
A FEW FAQS
Yes. The base is the same for the part numbers WHC480 & WHC363.
The conduit entry size for a WHC363 is 32mm.
Yes, the WHC363 comes with 4 32mm entries. two at the top and two at the bottom. Some of the key features are: 1 gang Isolating switch On/Off switch 8 mm diameter padlocking facility M330 rating Dimension: 114mm Height x 230 mm Width x 130 mm Depth For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=WHC363
No kA rating, it has a M330 rating
The entry point diameter is 32mm. The wmc463 is a metal clad 63 amp switch combination used in high impact areas. Please see below link for entire range and more information. Under the documentation tab. https://www.clipsal.com/Trade/Products/ProductDetail?catno=WMC463
The dimensions of the 363 switch are 60mm Dia. with mounting centers of 48mm apart. For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=363
