| number of terminal blocks | 8 earth (screw connection), 10 neutral (screw connection) |
|---|---|
| product brand | Clipsal |
| type of rail | 35 mm asymmetrical rail |
| [In] rated current | 63 A |
| PIM CR Type | Standard Commercial Reference |
| number of horizontal rows | 1 |
| number of 18 mm modules per row | 8 |
| enclosure mounting | surface |
| number of ways | 8 ways |
| enclosure material | technoplastic |
| Package 1 width | 2.1 dm |
| IK degree of protection | IK07 |
| total number of 18 mm modules | 8 |
| provided equipment | DIN rail, earth terminal block, neutral terminal block |
| Package 1 Length | 2.5 dm |
| door type | plain door |
| cable entry | knock-out top and bottom, knock-out rear |
| IP degree of protection | IP40 |
| fire resistance | 650 °C |
| width | 196 mm external |
| product or component type | enclosure |
| Package 1 Weight | 0.6 kg |
| colour | white (RAL 9003) |
| enclosure type | mini enclosure for modular device |
| EU RoHS Directive | Not applicable, out of EU RoHS legal scope |
| ERP-Print Medium Description | RESIMAXENCLOSURE 1ROW 8 MODULES SURFACE |
| type of front cover | plain |
| Package 1 Height | 1.12 dm |
| device application | distribution |
| range | Resi MAX |
| Global Data Status | publishable |
| Modified At | 2018/04/13 05:42:11 |
| Commercial status | Commercialised |
| depth | 101.5 mm external |
| height | 228 mm external |
| Source Key | RMXE108S |

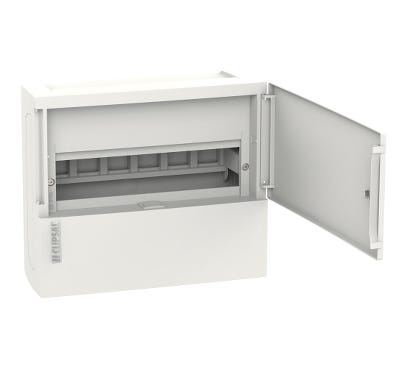

Clipsal Resi MAX Consumer Switchboard, Surface Mounted, 1 Row, 8 Modules - RMXE108S
RESIMAXENCLOSURE 1ROW 8 MODULES SURFACE
Dispatch. 2 days
Need more?
This item is currently available for backorder with an estimated arrival time of 2 days
Please note this ETA is provided to us by our suppliers and could potentially be delayed due to factors outside our control. If there are any delays we will contact you to keep you updated.
Price
$31.28 $28.44
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Clipsal Resi MAX Consumer Switchboard, Surface Mounted, 1 Row, 8 Modules - RMXE108S
Width 210
Height 112
Depth 250
| SKU | CLIRMXE108S |
|---|---|
| Supplier No | RMXE108S |
| EAN / Barcode | 3606485410678 |
| Width | 210 |
| Height | 112.000000 |
| Length | 250.000000 |
| Width | 210.000000 |
| Brand | Clipsal |
| Range | Resi MAX |
0 of 0 Reviews
A FEW FAQS
RMXE108S is an alternate to SAUMIP10108, surface mount load centre. RMXE108S has the dimension of 196mm(W) x 228mm(H) x 101.5mm(D). SAUMIP10108 has the dimensions of 196mm(W) x 228mm(H) x 102mm(D). For further information on RMXE108S please visit https://www.clipsal.com/Trade/Products/ProductDetail?CatNo=RMXE108S
The dimensions for the RMXE118F are - Dimensions - W402mm x H252mm x D98mm Cut out - H228mm x W378mm x D80mm
Dimension of RMXE118S is 376mm(W) x 228mm(H) x 101.5mm(D). For further information, please visit https://updates.clipsal.com/ClipsalOnline/Files/Brochures/W0001777.pdf
