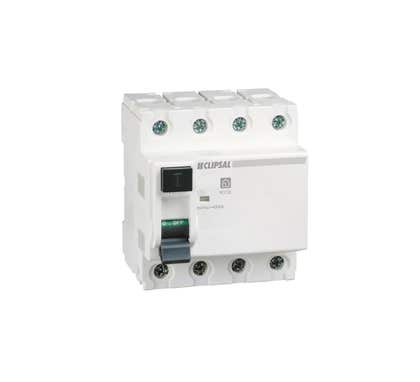

Residual Current Circuit Breaker
Brand Name: Clipsal
Type: Type AC
Range: 4 Series
Voltage: 415 VAC
Current: 40 A
Interrupt Rating: 3 kA
Number of Poles: 4
Rated Fault Current: 30 mA
Trip Range: 10 In
Enclosure: IP40
Actuator: Non-Delayed
Length: 75 mm
Width: 72 mm
Height: 81 mm
Temperature Rating: -5 to 40 deg C
Environmental Conditions: 20000 Cycles of Mechanical
2000 Cycles of Electrical
Clipsal RCD 4Mod 4P 40A 415V 30Ma - RCD440/30
Clipsal RCD440/30 Resi Max Series RCD, Type AC, 4 Pole, 40A, 30mA, 415V, 4.5KA, Din Rail Mount, 4 Module
From 1 May 2023, “Type AC” RCDs must not be installed in Australia. This change is due to the increased use of electronics, solar energy generation and other similar products with a high d.c waveform component.
0 In Stock
Need more?
This item is currently not available for backorder.
We can notify you when it's available again by subscribing to the back in stock notification. Enter your email address and click submit to automatically receive an email when we get more in.
Price
Special Price $11.00 $10.00 Regular Price $44.14
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Clipsal RCD 4Mod 4P 40A 415V 30Ma - RCD440/30
Width 800
Height 800
Depth 900
| SKU | CLIRCD440/30 |
|---|---|
| Supplier No | RCD440/30 |
| EAN / Barcode | 9318795000329 |
| Width | 95 |
| Height | 800.000000 |
| Length | 900.000000 |
| Width | 800.000000 |
| Brand | Clipsal |
| Range | Resi MAX |
| Number of Poles | 4 Pole |
| Voltage | 415 VAC |
Get Max 4 your buck
Complete protection with high performance. With Clipsal Max 4 you will find a range of enclosures, switchboards, residual current devices, miniature circuit breakers, isolators, distribution boards, overvoltage protection and accessories.
0 of 0 Reviews
A FEW FAQS
The RCD440/30 id 6ka with a fuse and the 4RC440/30 is 10ka.
The 4RC440/30 is from the Clipsal Max 4 range and the RCD440/30 is from the Clipsal ResiMax range. For more information, please refer to the link: https://www.clipsal.com/Trade/Products/ProductDetail?catno=RCD440/30 https://www.clipsal.com/Trade/Products/ProductDetail?catno=4RC440/30
The connection of the RCD240/30 is line at the top and load at the bottom. For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=RCD240/30
The replacement part would be a 4RC440SI30 which is super immune. For more information on this product range please visit the Clipsal website on the link provided https://www.clipsal.com/Trade/search-results?q=4rc440si30
part number is RCD440/30
The overall dimensions are 81mm (H) X 72mm (W) X 75mm (D)
