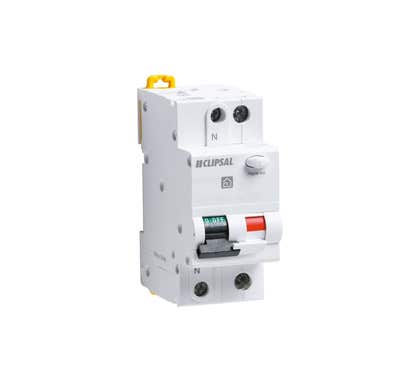

Residual Current Circuit Breaker
Brand Name: Clipsal
Type: Standard
Range: 4 Series
Voltage: 240 VAC
Current: 16 A
Interrupt Rating: 6 kA
Number of Poles: 2
Rated Fault Current: 30 mA
Curve Characterstic: C
Trip Range: 5 - 10 x In
Enclosure: IP20/IP40
Actuator: Non-Delayed
Length: 77.5 mm
Width: 36 mm
Height: 81 mm
Temperature Rating: -5 to 40 deg C
Environmental Conditions: 20000 Cycles of Mechanical
20000 Cycles of Electrical
Tightening Torque: 3.5 N/m
Clipsal MCB/RCD 2Mod 2P 16A 250V 30Ma 8Ka - RCBM216/30
Clipsal Rcbm216/30 Mcb/Rcd 2Mod 2P 16A 250V 30Ma 8Ka
From 1 May 2023, “Type AC” RCDs must not be installed in Australia. This change is due to the increased use of electronics, solar energy generation and other similar products with a high d.c waveform component.
-24 In Stock
Need more?
This item is currently not available for backorder.
We can notify you when it's available again by subscribing to the back in stock notification. Enter your email address and click submit to automatically receive an email when we get more in.
Price
Special Price $11.00 $10.00 Regular Price $35.32
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Clipsal MCB/RCD 2Mod 2P 16A 250V 30Ma 8Ka - RCBM216/30
Width 83
Height 40
Depth 100
| SKU | CLIRCBM216/30 |
|---|---|
| Supplier No | RCBM216/30 |
| EAN / Barcode | 9318795004631 |
| Width | 83 |
| Height | 40.000000 |
| Length | 100.000000 |
| Width | 83.000000 |
| Brand | Clipsal |
| Range | Resi MAX |
| Number of Poles | 2 Pole |
| Voltage | 240 VAC |
Get Max 4 your buck
Complete protection with high performance. With Clipsal Max 4 you will find a range of enclosures, switchboards, residual current devices, miniature circuit breakers, isolators, distribution boards, overvoltage protection and accessories.
0 of 0 Reviews
A FEW FAQS
RCBM216/30 can be used with RMXPH105,RMXPH112 or RMXPH124.
Yes they are.
The RCBM210/30 is a combination RCD/MCB. For further information , visit link below:- https://www.clipsal.com/Trade/search-results?q=RCBM210/30
The RCBM216/30 line and load terminals may be connected to either the top or bottom for ease of installation. Some of the key features are: Separate RCD trip flag for easy fault finding New insulated openings for easy busbar installation No need to cut the busbar providing safe and quick fit off Top and bottom line load compatible for easy installation For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=RCBM216/30
The part number for a 2 pole 16amp 10kA RCBO is - 4RCBM216/30 For further information , visit link below:- https://www.clipsal.com/Trade/search-results?q=4RCBM216/30
The dimensions of the RCBM216/30 are 44mm(D) X 81mm(H) X 36mm(W). Some of the key feaures are: Seperate RCD trip flag for easy fault finding New insulated openings for easy busbar installation No need to cut the busbar providing safe and quick fit off Top and bottom line load compatible for easy installation Operating temperature: -5 to 40 deg C/li> Mechanical combination Standard-type 4 kV Rated impulse withstand voltage For further information please visit www.clipsal.com/Trade/Products/ProductDetail?catno=RCBM216/30
