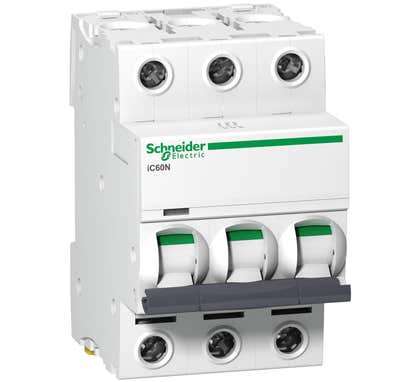

Schneider Electric Acti 9 iC60 Acti9Ic60N 3P 40A C Miniature Circuit Breaker - A9F44340
Acti9Ic60N 3P 40A C Miniature Circuit Breaker
2 In Stock
Need more?
This item is currently available for backorder with an estimated arrival time of 2 days
Please note this ETA is provided to us by our suppliers and could potentially be delayed due to factors outside our control. If there are any delays we will contact you to keep you updated.
Price
$54.23 $49.30
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Schneider Electric Acti 9 iC60 Acti9Ic60N 3P 40A C Miniature Circuit Breaker - A9F44340
Width 540
Height 750
Depth 900
| SKU | SCHA9F44340 |
|---|---|
| Supplier No | A9F44340 |
| EAN / Barcode | 3606480513459 |
| Standards | EN/IEC 60947-2 |
| Width | 54 |
| Height | 750.000000 |
| Length | 900.000000 |
| Width | 540.000000 |
| Brand | Clipsal |
| Range | Acti9 |
| Current Rating | 40 Amps |
| Voltage | 440 V AC 50/60 Hz |
This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 40A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 85mm x (D) 78.5mm. The weight is 0.375kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.
Acti 9 is your safe, efficient and simple choice for low-voltage modular systems
Acti 9 helps you meet developing energy efficiency and environmental certifications or requirements, now and in the future. It minimises impact from the design stage, through the installation’s lifetime of use and eventual recycling. Through both design and technology, Acti 9 provides you with the key combination of less impact and more efficiency that is necessary for the environment today.
0 of 0 Reviews
A FEW FAQS
The A9F44140 is the Acti 9 substitute. Please see the attached datasheet for further information on the A9F44140.
Protective devices which are required for EV chargers can be either RCBO or MCB+RCCB. For 1P 16A => 3,7Kw load protection devices = 20A curve C + type B 30mA ( A9F54220 + A9Z51240) For 1P 32A => 7Kw load protection devices = 40A curve C + type B 30mA ( A9F54240 + A9Z51240) For 3P 16A => 11Kw load protection devices = 20A curve C + type B 30mA ( A9F54420 + A9Z51440) For 3P 32A => 22Kw load protection devices = 40A curve C + type B 30mA ( A9F54440 + A9Z51440) The circuit breaker value (20A or 40A) depends on the cable size, length and environmental parameters (up to the electrician) For further information see:https://www.se.com/au/en/product-subcategory/80408-evlink-charging-station/
Data sheet attached
The part number for a 3 phase 10amp RCBO is - A9F44310 & A9V02763 For further information , visit links below:- https://www.schneider-electric.com.au/en/search/A9F44310 https://www.schneider-electric.com.au/en/search/A9V02763
The part number for a 3 phase 20amp MCB/RCD combo is - A9F44320 & A9V02763 For further information visit links below:- https://www.schneider-electric.com.au/en/search/A9F44320 https://www.schneider-electric.com.au/en/search/A9V02763
Parts that should be supplied as follows: KITPARKING22-1: A9F54440 x 1, MCB, iC60H 4P 40A C Curve A9Z51440 x 1, RCD, iIDP 4P 40A 30mA Type B, 400V A9A26969 x 2, Under voltage release, iMNX 220 240VAC A9F44204 x 1, MCB, iC60N 2P 4A C Curve A9R91240 x 1, RCCB, iID 2P 40A 30mA Type Asi A9A26924 x 2, Aux contact, iOF 240 415VAC 24 130VDC KITPARKING22-2: A9F54440 x 2, MCB, iC60H 4P 40A C Curve A9Z51440 x 2, RCD, iIDP 4P 40A 30mA Type B, 400V A9A26969 x 3, Under voltage release, iMNX 220 240VAC A9F44204 x 1, MCB, iC60N 2P 4A C Curve A9R91240 x 1, RCCB, iID 2P 40A 30mA Type Asi A9A26924 x 4, Aux contact, iOF 240 415VAC 24 130VDC
