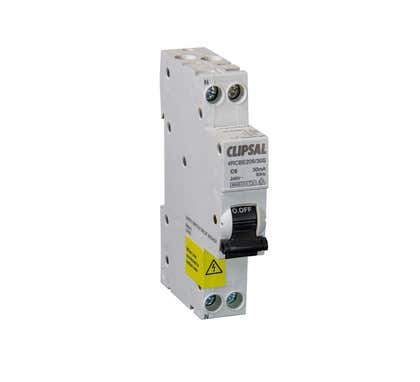

Residual Current Circuit Breaker
Brand Name: Clipsal
Type: Type A
Range: 4 Series
Voltage: 240 VAC
Current: 32 A
Interrupt Rating: 6 kA
Number of Poles: 2
Curve Characterstic: C
Trip Range: 5 - 10 x In
Enclosure: IP20/IP40
Length: 71.5 mm
Width: 18 mm
Height: 92.5 mm
Temperature Rating: -5 to 40 deg C
Environmental Conditions: 20000 Cycles of Mechanical
10000 Cycles of Electrical
Rated Fault Current: 30 mA
Tightening Torque 2 Nm
AS/NZS 61009
Slim Design
Clipsal MCB/RCD 32A 2P 30Ma A-Type Slimline - 4RCBE232/30S
Clipsal 4Rcbe232/30S Mcb/Rcd 32A 2P 30Ma A-Type Slimline
0 In Stock
Need more?
This item is currently not available for backorder.
We can notify you when it's available again by subscribing to the back in stock notification. Enter your email address and click submit to automatically receive an email when we get more in.
Price
$38.75 $35.23
Choose your style, Select your Switch and Checkout
We can customise your powerpoint to a range of colours and layouts, suited to your needs.
Clipsal MCB/RCD 32A 2P 30Ma A-Type Slimline - 4RCBE232/30S
Width 8
Height 2
Depth 10
| SKU | CLI4RCBE232/30S |
|---|---|
| Supplier No | 4RCBE232/30S |
| EAN / Barcode | 9311554758745 |
| Width | 1 |
| Height | 2.000000 |
| Length | 10.000000 |
| Width | 8.000000 |
| Brand | Clipsal |
| Range | Max4 |
| Number of Poles | 2 Pole |
| Current Rating | 32 Amps |
| Voltage | 240 VAC |
Get Max 4 your buck
Complete protection with high performance. With Clipsal Max 4 you will find a range of enclosures, switchboards, residual current devices, miniature circuit breakers, isolators, distribution boards, overvoltage protection and accessories.
0 of 0 Reviews
A FEW FAQS
The dimensions for the 4RCBE220/30S are - L93mm x D72mm x W18mm For further information , visit link below:- https://www.clipsal.com/Trade/search-results?q=4RCBE220/30S
This part has been replaced with 4RCBE210/30S
Yes
The part number for the replacement for a 2 pole RCBO , 4EBE232/30 is - 4RCBM232/32 For further information , visit link below:- https://www.clipsal.com/Trade/search-results?q=4RCBM232/32
Yes, we do have a 10A RCBO double pole that is 1 module wide. The part number is RCBE210/30S.
Part codes you need a PDL 56CB4 with a 4RCBE232/10
